Decals

Guerilla provides Decals to allow for fast enhancement of texture with random-like textures such as bullet impacts, manholes, pedestrian crossings on road, etc. Decals act as stamps layered over specific shader parameters, like Diffuse Color, Roughness, etc.

Decals are bounding boxes that project textures onto objects, on a specific projection plane. These can be generated using the RenderGraph at specific locations.

Generate Decals on locators

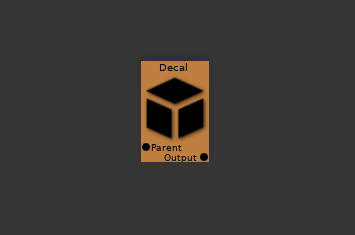

Create a Decal node using the Node Picker Ctrl+Space, select Decal.

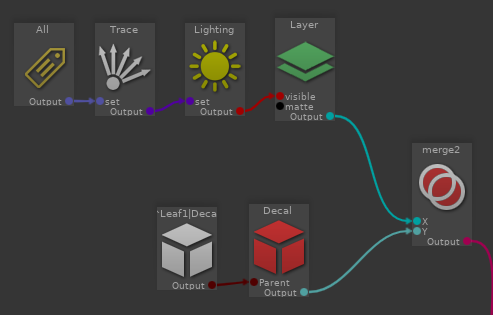

Connect locators to the Decal parent input, using a Path node with a pattern for example.

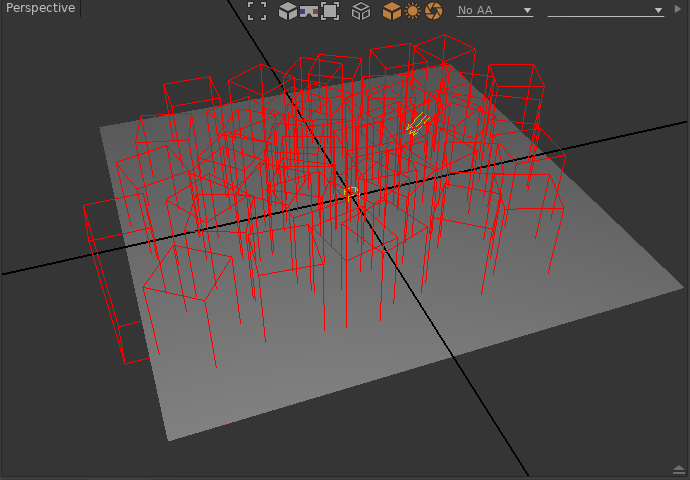

This results in Decals being spawned at the locators like this:

Add texture channels to the Decal

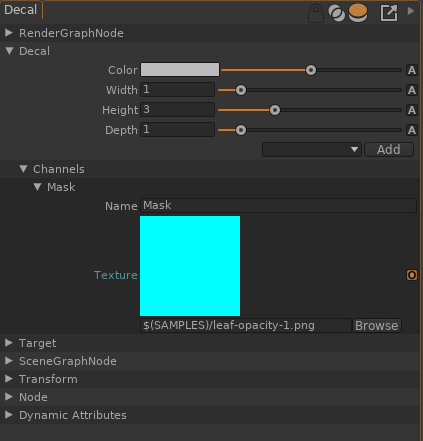

Select a texture for the Mask of the Decal, in the Decal properties

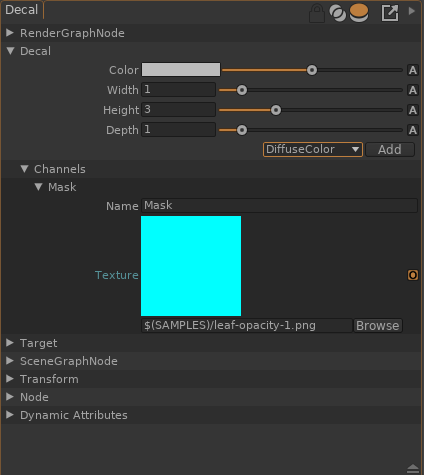

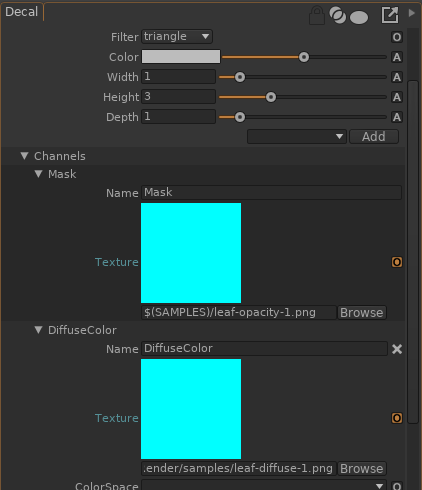

Add a DiffuseColor channel to the Decal, and select a texture.

Activate the Decal channels on the object to shade

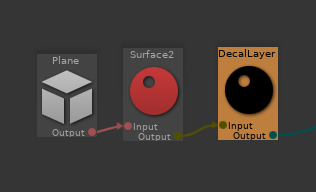

Add a DecalLayer node to the flow of the object to shade, set its Layer to 1 or above.

Check the Diffuse Color channel

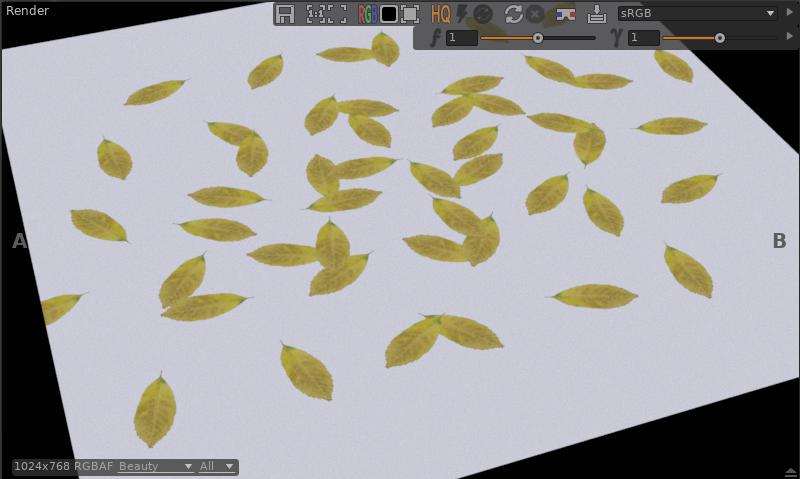

The base plane will render like this:

See the Decal sample for a live example of how to setup decals.
